GenAI-Driven Process Optimization in Manufacturing Using Digital Twins

A virtual model of machines, conveyors, buffers, tooling, and process flows that behaves like your real production environment.

Continuous data flow from PLCs, sensors, and MES systems, so the twin reflects actual operating conditions in real time.

Cloud-based simulation runs multiple production scenarios in parallel to evaluate the impact on OEE, throughput, downtime, and quality.

AI explores different combinations of sequencing, setpoints, maintenance timing, and resource allocation to find the most efficient setup.

Validated recommendations are pushed to dashboards, MES, or control systems – with human approval or automated safeguards in place.

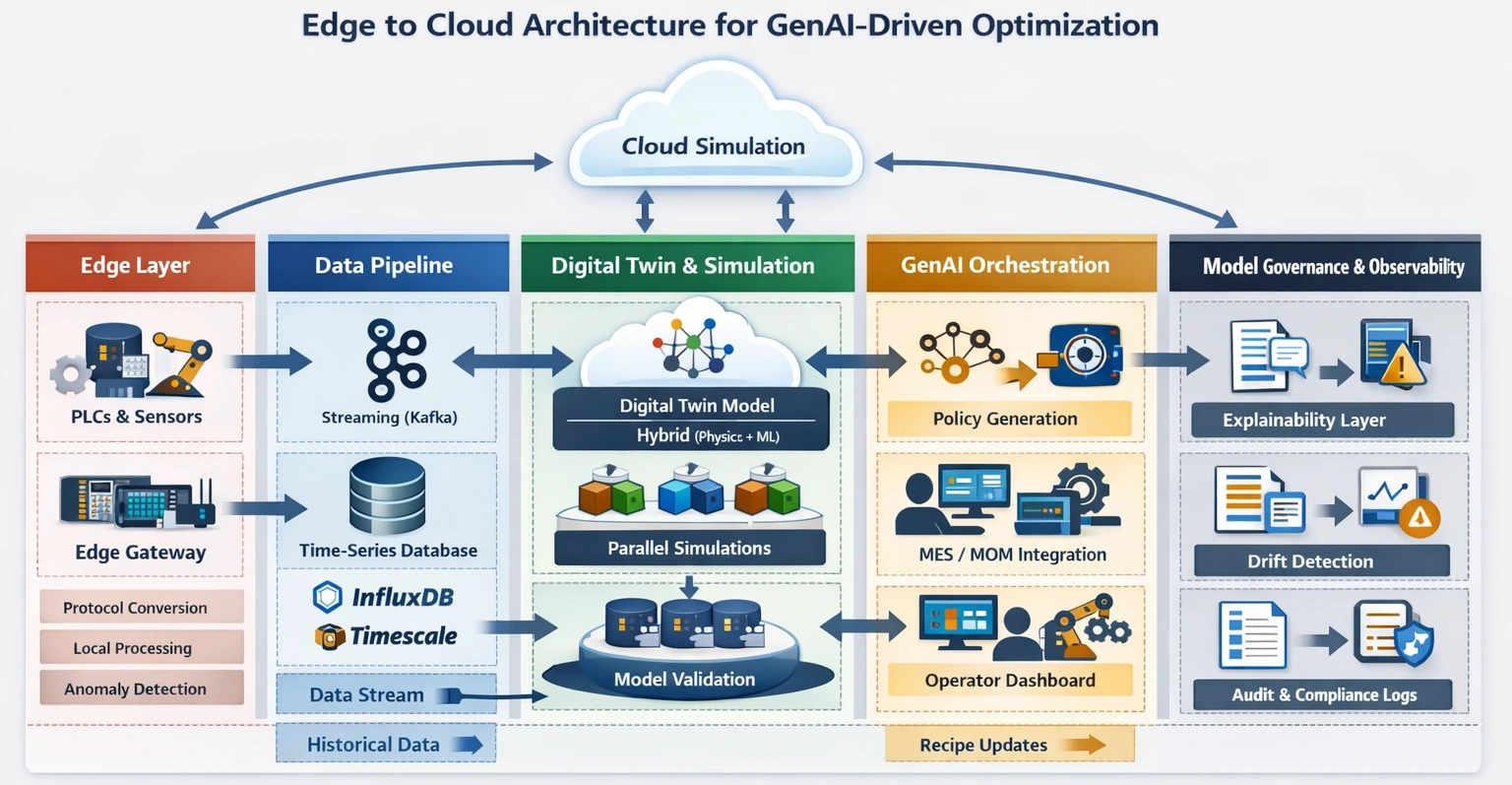

→ PLCs, RTUs, and smart sensors collecting cycle times, part counts, torque, vibration, and temperature.

→ Edge gateways performing protocol translation (OPC UA, Modbus/TCP), local filtering, and time alignment.

→ Lightweight event processing (early anomaly detection, burst buffering).

→ High-throughput streaming (Kafka/managed streaming) for deterministic ordering.

→ Time-series storage (InfluxDB, Timescale, or cloud native alternatives) with compression and retrospective replay.

→ Metadata/catalog (data contracts, asset registry).

→ Hybrid Models: First-principles (kinematic/thermodynamic) where applicable, augmented by ML surrogate models for computational speed.

→ Cloud-based parallel simulation (containerized simulation worker fleet) to run thousands of scenarios concurrently.

→ Model versioning and validation harness (unit tests for models, KPI-based acceptance criteria).

→ Agent framework or optimization controllers that generate candidate policies (e.g., sequencing rules, conveyor speeds, buffer sizes).

→ Objective Functions: Weighted composite of OEE, energy per unit, quality yield, and changeover cost.

→ Search Methods: Constrained optimization (MILP/CSP) combined with model-based RL or evolutionary strategies for non-convex policy spaces.

→ MES / MOM integration for recipe and scheduling updates.

→ Supervisory layer (operator dashboard) for human-in-the-loop approvals.

→ Secure actuator interface for automated deployments (with safety interlocks; red-team testing required).

→ An explainability layer to translate generative model recommendations to domain terms.

→ Drift detection alerts when model predictions diverge from live telemetry.

→ Audit trails for compliance and operator accountability.

Objective: Increase throughput by continuously identifying shifting constraints across the line.

How it works:

→ Digital twin models cycle times, buffer levels, and interdependencies.

→ GenAI simulates thousands of sequencing permutations.

→ AI recommends speed adjustments, buffer resizing, or task redistribution.

Impact:

→ +5–12% throughput improvement

→ Reduced line starvation and blocking

→ Improved takt time stability

Objective: Improve the availability and performance components of OEE.

How it works:

→ IIoT data feeds micro-stop patterns into the twin.

→ GenAI clusters root-cause combinations (operator, material, tooling).

→ Simulation tests preventive sequencing and speed harmonization.

Impact:

→ 3–10% OEE improvement

→ 15–25% reduction in minor stops

→ More stable cycle time distribution

Objective: Optimize scheduling for fluctuating order volumes.

How it works:

→ Digital twin mirrors production routing logic.

→ GenAI generates schedule permutations balancing changeovers, WIP, and energy load.

→ Cloud-based manufacturing simulation validates resilience under demand shocks.

Impact:

→ Faster response to order changes

→ Reduced changeover losses

→ Lower WIP inventory

Objective: Harmonize upstream and downstream equipment speeds.

How it works:

→ Twin models buffer capacities and cycle-time variance.

→ GenAI runs constrained optimization for conveyor speeds and batch sizes.

→ The system suggests optimal buffer thresholds to prevent congestion.

Impact:

→ 8–15% reduction in line blocking

→ Higher sustained throughput

→ Reduced work-in-progress pileup

Objective: Minimize downtime from predictable tool degradation.

How it works:

→ Twin includes degradation models for critical assets.

→ GenAI simulates failure timing under various load patterns.

→ AI suggests preemptive maintenance windows with minimal throughput loss.

Impact:

→ 10–20% downtime reduction

→ Optimized maintenance scheduling

→ Lower emergency repair cost

Objective: Optimize throughput while reducing energy cost per unit.

How it works:

→ Twin incorporates energy consumption curves.

→ GenAI tests speed adjustments and batching logic.

→ Optimization balances output with energy tariff schedules.

Impact:

→ 5–12% energy cost reduction

→ ESG compliance improvement

→ Improved energy per unit KPI

Objective: Reduce changeover time and loss.

How it works:

→ Twin simulates tooling swaps and operator task overlap.

→ GenAI evaluates alternate sequencing and batch strategies.

→ AI identifies minimal-impact changeover windows.

Impact:

→ 10–18% faster changeovers

→ Higher schedule adherence

→ Reduced idle time

Objective: Improve first-pass yield without slowing production.

How it works:

→ Twin integrates quality inspection data.

→ GenAI generates parameter combinations (temperature, torque, speed).

→ Simulation identifies stable operating envelope.

Impact:

→ 2–6% yield improvement

→ Reduced rework cost

→ Lower scrap rate

Objective: Standardize and optimize performance across sites.

How it works:

→ Cloud-based manufacturing simulation compares plant twins.

→ GenAI detects configuration inefficiencies.

→ AI recommends cross-site best-practice parameter adoption.

Impact:

→ Enterprise-wide throughput uplift

→ Standardized performance baselines

→ Data-driven capital allocation

Objective: Shift from rule-based automation to self-optimizing production.

How it works:

→ Continuous IIoT data feeds twin in near real time.

→ GenAI optimization runs at predefined intervals.

→ Approved adjustments pushed via MES integration.

Impact:

→ Continuous performance tuning

→ Reduced human intervention

→ Peak production efficiency maintenance

→ Start by auditing your current data ecosystem. Map IIoT coverage, data quality, MES/ERP integrations, and existing reporting workflows.

→ Identify where bottlenecks are visible and where blind spots exist.

→ Establish baseline KPIs such as OEE, throughput, downtime frequency, and energy per unit.

→ Select one high-impact production line, preferably one with frequent micro-stoppages or throughput variability.

→ Build a Digital Twin that mirrors machine dependencies, cycle times, changeovers, and maintenance history.

→ Validate the model accuracy against real production data before layering AI simulations.

→ Keep the pilot focused and measurable to secure internal buy-in.

→ Introduce Generative AI models to simulate thousands of production permutations virtually.

→ Test variations in scheduling, buffer sizing, shift patterns, and maintenance timing.

→ Compare simulated results with historical production performance.

→ Prioritize recommendations that show measurable OEE or throughput uplift with minimal disruption.

→ Connect optimization insights into operational systems for real-time execution.

→ Establish automated or semi-automated feedback loops to adjust production parameters.

→ Ensure cybersecurity and governance protocols align with enterprise IT policies.

→ Train operations teams to interpret AI-driven recommendations confidently.

→ Expand the intelligence layer across additional lines or plants once pilot KPIs validate impact.

→ Standardize data models to support cross-site benchmarking.

→ Continuously retrain AI models using fresh production data.

→ Move toward a closed-loop system where optimization becomes an ongoing capability rather than a one-time initiative.
